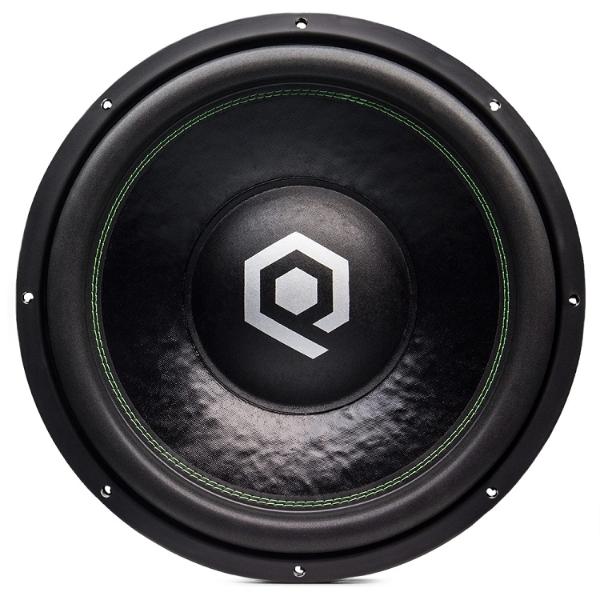

Soundqubed  HDS3.115 D2
Soundqubed  HDS3.115 D2
Model

Soundqubed HDS3.115 D2

Rating
DIAM
15"
FS(Hz)
35
VAS(l)
67.5
QTS
0.53
PWR(W)
2400
SPL(dB)
88.8
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
35
Vas(l)
67.5
Qts
0.525
Qms
5.64
Qes
0.579
Bl(Tm)
19.5
Mms(gr)
261
Cms(mm/N)
0.079
Rms(kg/s)
10.177
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
77635
Vd(l)
1.087
X-max(mm)
14
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.8
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
4.53
Total Diameter (mm)
0
Cutout Diameter (mm)
345
Mounting Depth (mm)
197
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
