Model

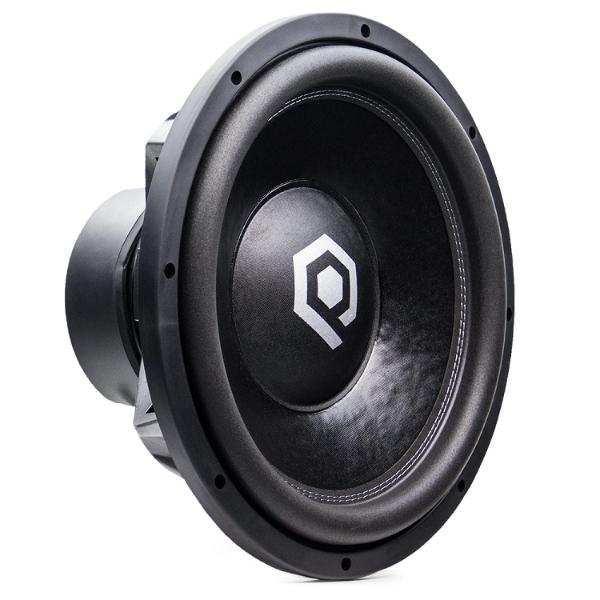

Soundqubed HDS315 D4
Rating
DIAM
15"
FS(Hz)
35.7
VAS(l)
56.7
QTS
0.83
PWR(W)
2400
SPL(dB)
86.3
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.7
Vas(l)
56.7
Qts
0.829
Qms
7.836
Qes
0.927
Bl(Tm)
25.2
Mms(gr)
362
Cms(mm/N)
0.055
Rms(kg/s)
10.339
Le(mH)
0
Re(Ohm)
7.3
Sd(sq.mm)
85280
Vd(l)
2.388
X-max(mm)
28
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.68
Total Diameter (mm)
0
Cutout Diameter (mm)
349
Mounting Depth (mm)
210
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
