Model

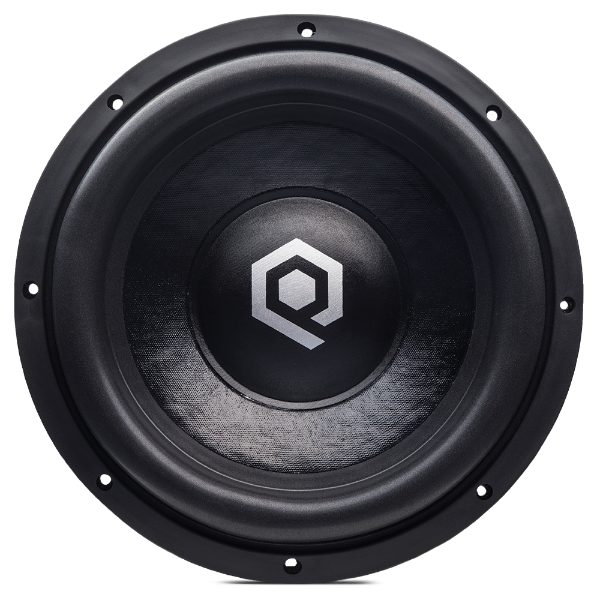

Soundqubed HDX3
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
12"
FS(Hz)
26
VAS(l)
28.6
QTS
0.32
PWR(W)
4500
SPL(dB)
84
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
28.6
Qts
0.319
Qms
5
Qes
0.341
Bl(Tm)
31.4
Mms(gr)
441
Cms(mm/N)
0.079
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
36
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
4500
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.68
Total Diameter (mm)
305
Cutout Diameter (mm)
279
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
