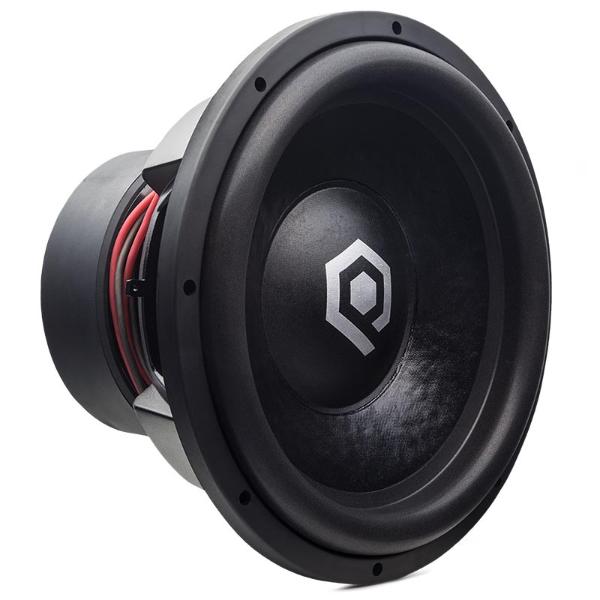

Soundqubed  HDX315 D2
Soundqubed  HDX315 D2
Model

Soundqubed HDX315 D2

Rating
DIAM
15"
FS(Hz)
26
VAS(l)
78.1
QTS
0.34
PWR(W)
4500
SPL(dB)
87.4
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
26
Vas(l)
78.1
Qts
0.341
Qms
4.9
Qes
0.366
Bl(Tm)
30.5
Mms(gr)
473
Cms(mm/N)
0.082
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
4.4
Sd(sq.mm)
82000
Vd(l)
2.96
X-max(mm)
36
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
4500
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.36
Sensitivity(dB) 1-W
87.4
Sensitivity(dB) 2.8-V
90.2

Mounting Information

Speaker Displacement (l)
4.81
Total Diameter (mm)
0
Cutout Diameter (mm)
349
Mounting Depth (mm)
241
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
