Model

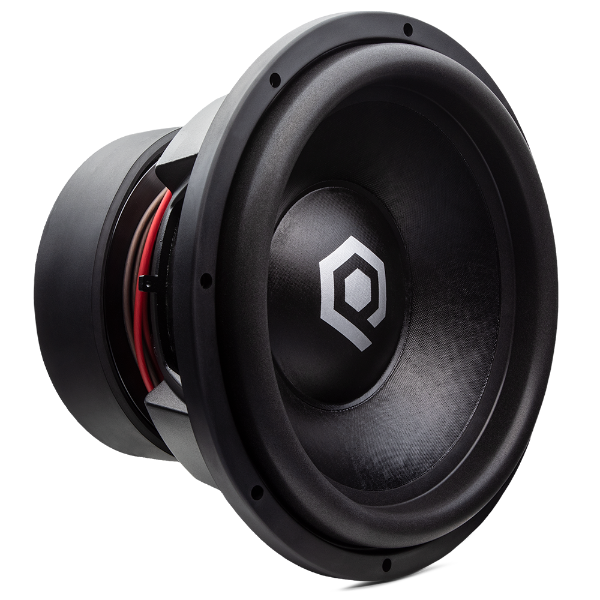

Soundqubed HDX415
Rating
DIAM
15"
FS(Hz)
29.6
VAS(l)
55
QTS
0.34
PWR(W)
6000
SPL(dB)
87.8
IMP(Ohm)
1x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
29.6
Vas(l)
55
Qts
0.336
Qms
4.05
Qes
0.366
Bl(Tm)
21.8
Mms(gr)
500
Cms(mm/N)
0.058
Rms(kg/s)
22.97
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
81799
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
6000
RMS Power(W.)
2000
Number of Coils
1
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.38
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
94
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
