Model

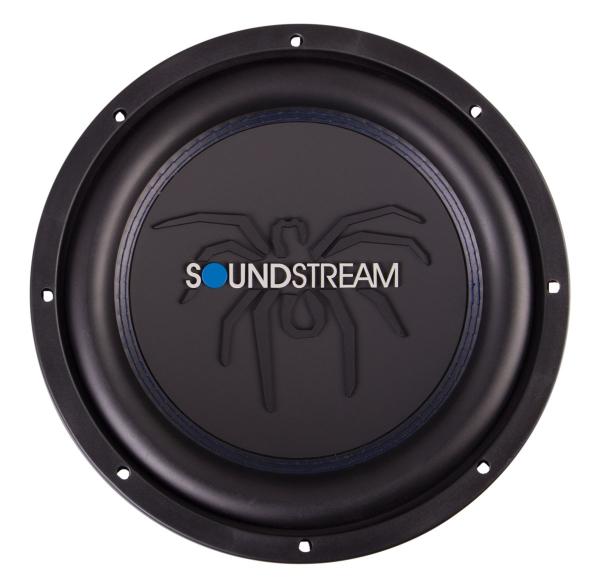

Soundstream PCO.10
Rating
DIAM
10"
FS(Hz)
29.5
VAS(l)
79.9
QTS
0.6
PWR(W)
600
SPL(dB)
86.5
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
29.5
Vas(l)
79.9
Qts
0.598
Qms
4.16
Qes
0.698
Bl(Tm)
11.8
Mms(gr)
133
Cms(mm/N)
0.219
Rms(kg/s)
5.918
Le(mH)
2.39
Re(Ohm)
4
Sd(sq.mm)
50704
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
89.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
245
Mounting Depth (mm)
127
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
