Model

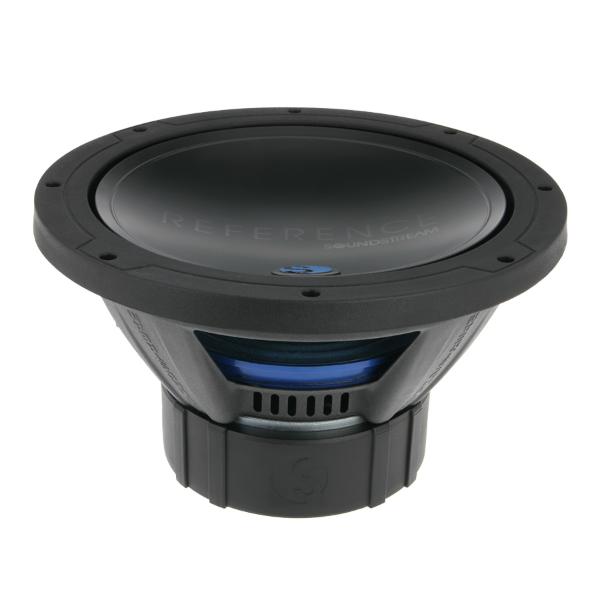

Soundstream R.124
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
12"
FS(Hz)
27.6
VAS(l)
60.3
QTS
0.54
PWR(W)
2000
SPL(dB)
0
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27.6
Vas(l)
60.3
Qts
0.54
Qms
6.19
Qes
0.59
Bl(Tm)
22.6
Mms(gr)
252
Cms(mm/N)
0.148
Rms(kg/s)
7.06
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
53604
Vd(l)
0.804
X-max(mm)
15
X-mech(mm)
30
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
84.36
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
279
Mounting Depth (mm)
178
Magnet Diameter (mm)
178
Optimum Enclosures
Enclosures
Closed, BP4
