Model

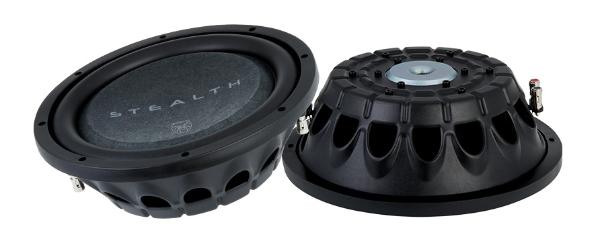

Soundstream STEALTH-124
Rating
DIAM
12"
FS(Hz)
30
VAS(l)
59.5
QTS
0.69
PWR(W)
700
SPL(dB)
84.8
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
59.5
Qts
0.687
Qms
4.53
Qes
0.81
Bl(Tm)
16.4
Mms(gr)
159
Cms(mm/N)
0.177
Rms(kg/s)
6.627
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
48685
Vd(l)
0.633
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
286
Mounting Depth (mm)
89
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
