Model

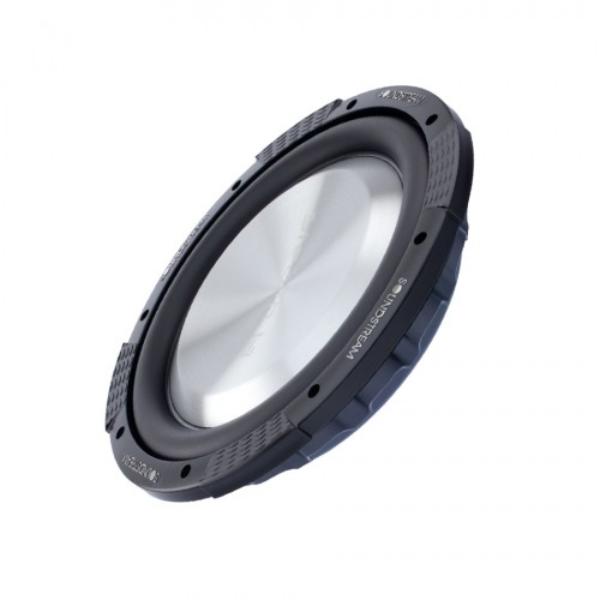

Soundstream STEALTH-13
Rating
DIAM
13"
FS(Hz)
30.2
VAS(l)
42.2
QTS
0.85
PWR(W)
400
SPL(dB)
80.7
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30.2
Vas(l)
42.2
Qts
0.85
Qms
1.92
Qes
1.525
Bl(Tm)
11.3
Mms(gr)
282
Cms(mm/N)
0.098
Rms(kg/s)
27.87
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
55082
Vd(l)
0.33
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
13
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
80.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
289
Mounting Depth (mm)
51
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
