Model

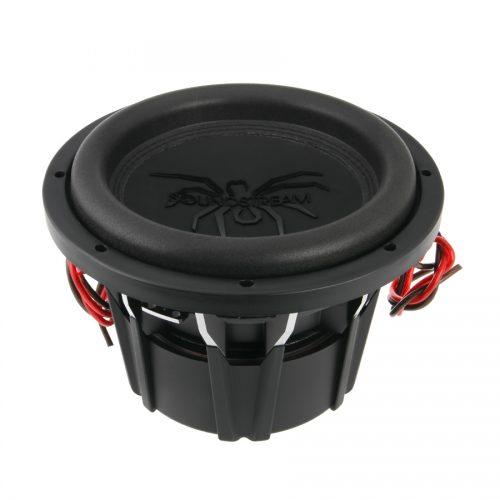

Soundstream T5.102
Rating
DIAM
10"
FS(Hz)
39.8
VAS(l)
11
QTS
0.56
PWR(W)
2000
SPL(dB)
82.5
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39.8
Vas(l)
11
Qts
0.559
Qms
7.9
Qes
0.601
Bl(Tm)
18.6
Mms(gr)
291
Cms(mm/N)
0.055
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
37621
Vd(l)
2.832
X-max(mm)
14
X-mech(mm)
38
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.5
Sensitivity(dB) 2.8-V
85.9
Mounting Information
Speaker Displacement (l)
2.83
Total Diameter (mm)
283
Cutout Diameter (mm)
238
Mounting Depth (mm)
159
Magnet Diameter (mm)
187
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
