Model

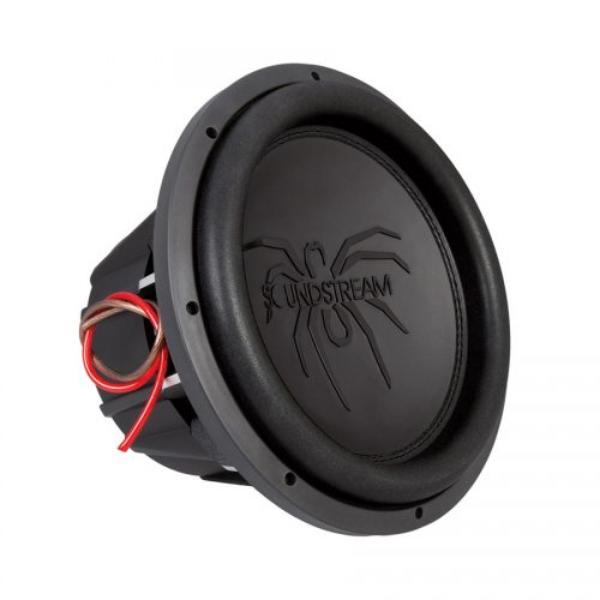

Soundstream T5.152
Rating
DIAM
15"
FS(Hz)
35
VAS(l)
43.4
QTS
0.89
PWR(W)
2600
SPL(dB)
84.4
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
43.4
Qts
0.892
Qms
7.244
Qes
1.017
Bl(Tm)
18.6
Mms(gr)
446
Cms(mm/N)
0.046
Rms(kg/s)
13.517
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
81122
Vd(l)
1.339
X-max(mm)
17
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2600
RMS Power(W.)
1300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
359
Mounting Depth (mm)
229
Magnet Diameter (mm)
200
Optimum Enclosures
Enclosures
Closed, BP4
