Model

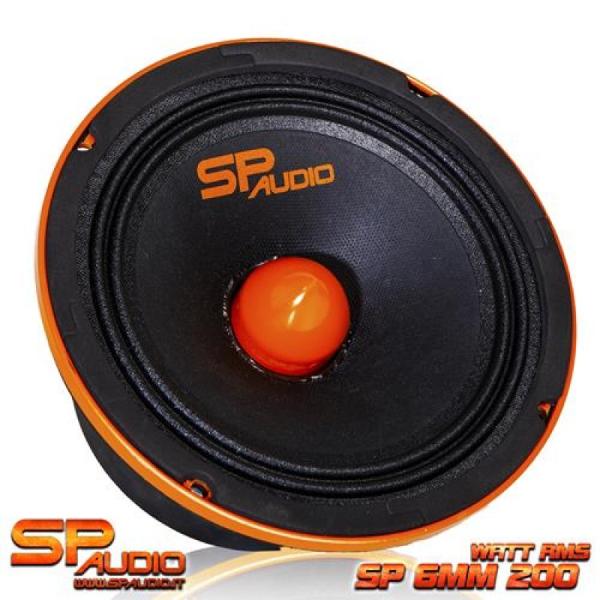

SP audio SP6MM
Rating
DIAM
7"
FS(Hz)
150
VAS(l)
2.9
QTS
0.73
PWR(W)
400
SPL(dB)
92.9
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
150
Vas(l)
2.9
Qts
0.729
Qms
9.3
Qes
0.761
Bl(Tm)
7.5
Mms(gr)
11
Cms(mm/N)
0.101
Rms(kg/s)
1.12
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
22400
Vd(l)
0.045
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.24
Sensitivity(dB) 1-W
92.9
Sensitivity(dB) 2.8-V
97.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
174
Cutout Diameter (mm)
147
Mounting Depth (mm)
78
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Vented, BP6
