Model

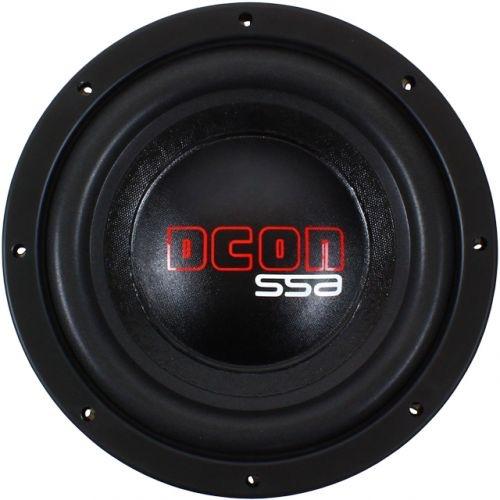

SSA DCON 10 S4
Rating
DIAM
10"
FS(Hz)
29.4
VAS(l)
37.8
QTS
0.31
PWR(W)
800
SPL(dB)
86.5
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.4
Vas(l)
37.8
Qts
0.31
Qms
4.09
Qes
0.33
Bl(Tm)
15.1
Mms(gr)
105
Cms(mm/N)
0.279
Rms(kg/s)
4.74
Le(mH)
0
Re(Ohm)
3.9
Sd(sq.mm)
30900
Vd(l)
0.494
X-max(mm)
16
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
89.6
Mounting Information
Speaker Displacement (l)
3
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
