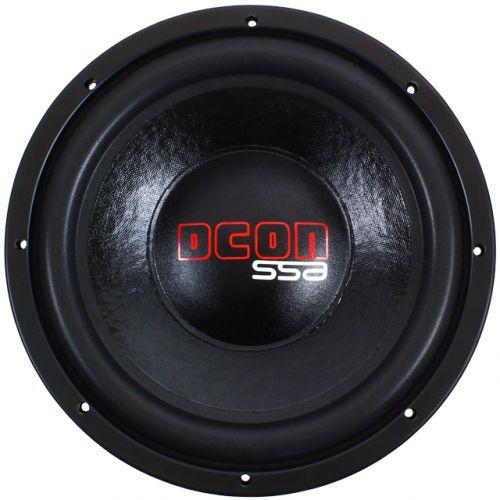

SSA DCON 12 D4
SSA DCON 12 D4
Model

SSA DCON 12 D4

Rating
DIAM
12"
FS(Hz)
28.1
VAS(l)
37.7
QTS
0.33
PWR(W)
600
SPL(dB)
85.6
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
28.1
Vas(l)
37.7
Qts
0.33
Qms
4.09
Qes
0.35
Bl(Tm)
21.7
Mms(gr)
121
Cms(mm/N)
0.265
Rms(kg/s)
5.223
Le(mH)
0
Re(Ohm)
7.7
Sd(sq.mm)
48000
Vd(l)
0.768
X-max(mm)
16
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.6
Sensitivity(dB) 2.8-V
85.8

Mounting Information

Speaker Displacement (l)
3.964
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
165
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
