Model

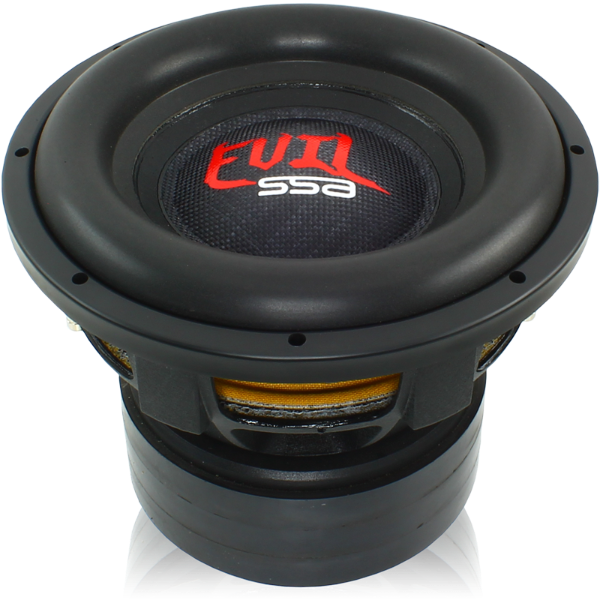

SSA EVIL 15 D1
Rating
DIAM
15"
FS(Hz)
30.1
VAS(l)
64.8
QTS
0.58
PWR(W)
7000
SPL(dB)
86.5
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30.1
Vas(l)
64.8
Qts
0.58
Qms
6.65
Qes
0.6
Bl(Tm)
15.5
Mms(gr)
399
Cms(mm/N)
0.07
Rms(kg/s)
11.359
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
81000
Vd(l)
2.673
X-max(mm)
33
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
7000
RMS Power(W.)
3500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
92.7
Mounting Information
Speaker Displacement (l)
6.513
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
