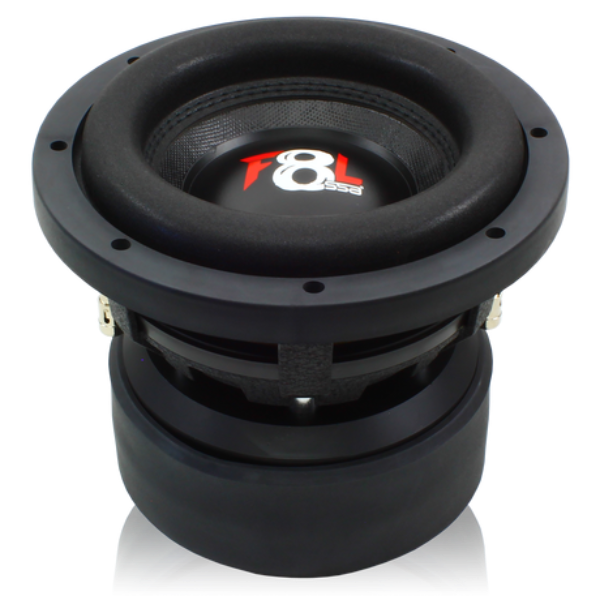

Model
SSA F8L D2
Rating
DIAM
8"
FS(Hz)
32.1
VAS(l)
9.7
QTS
0.25
PWR(W)
900
SPL(dB)
82.6
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.1
Vas(l)
9.7
Qts
0.25
Qms
4.31
Qes
0.27
Bl(Tm)
20.8
Mms(gr)
144
Cms(mm/N)
0.17
Rms(kg/s)
6.7
Le(mH)
3.16
Re(Ohm)
4
Sd(sq.mm)
20193
Vd(l)
0.303
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
900
RMS Power(W.)
650
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.6
Sensitivity(dB) 2.8-V
85.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
222
Cutout Diameter (mm)
187
Mounting Depth (mm)
165
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
