Model

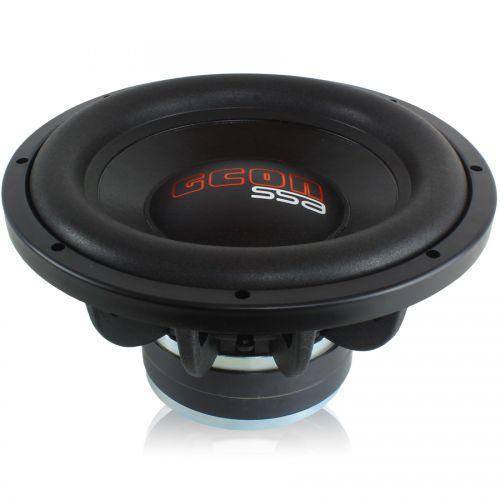

SSA GCON 12 D4
Rating
DIAM
12"
FS(Hz)
31.5
VAS(l)
45.2
QTS
0.53
PWR(W)
1500
SPL(dB)
85.7
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.5
Vas(l)
45.2
Qts
0.53
Qms
6.5
Qes
0.58
Bl(Tm)
19.1
Mms(gr)
183
Cms(mm/N)
0.139
Rms(kg/s)
5.572
Le(mH)
0
Re(Ohm)
5.8
Sd(sq.mm)
48100
Vd(l)
0.962
X-max(mm)
20
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
87.1
Mounting Information
Speaker Displacement (l)
4.247
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
178
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
