Model

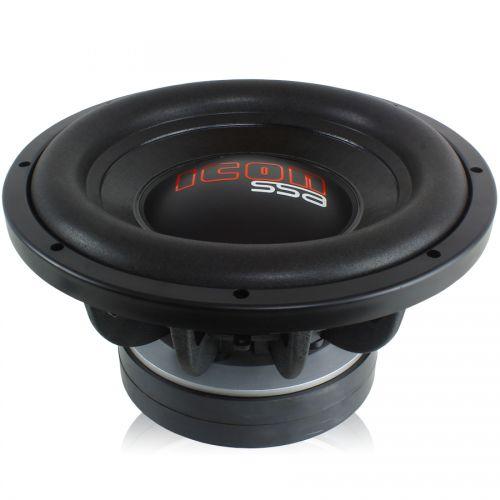

SSA ICON 10 D2
Rating
DIAM
10"
FS(Hz)
31.1
VAS(l)
19.1
QTS
0.38
PWR(W)
2500
SPL(dB)
83.3
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.1
Vas(l)
19.1
Qts
0.38
Qms
5.5
Qes
0.41
Bl(Tm)
17.2
Mms(gr)
181
Cms(mm/N)
0.145
Rms(kg/s)
6.431
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
31000
Vd(l)
0.651
X-max(mm)
21
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.14
Sensitivity(dB) 1-W
83.3
Sensitivity(dB) 2.8-V
86.8
Mounting Information
Speaker Displacement (l)
3.398
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
