Model

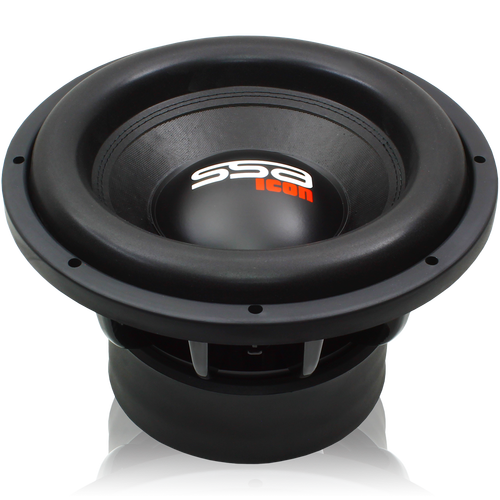

SSA ICON 12 D4
Rating
DIAM
12"
FS(Hz)
30.9
VAS(l)
37.4
QTS
0.42
PWR(W)
0
SPL(dB)
85.7
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30.9
Vas(l)
37.4
Qts
0.42
Qms
5.8
Qes
0.45
Bl(Tm)
21.1
Mms(gr)
260
Cms(mm/N)
0.1
Rms(kg/s)
8.71
Le(mH)
3.7
Re(Ohm)
8
Sd(sq.mm)
51359
Vd(l)
1.181
X-max(mm)
23
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
0
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.24
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
85.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
318
Cutout Diameter (mm)
283
Mounting Depth (mm)
171
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
