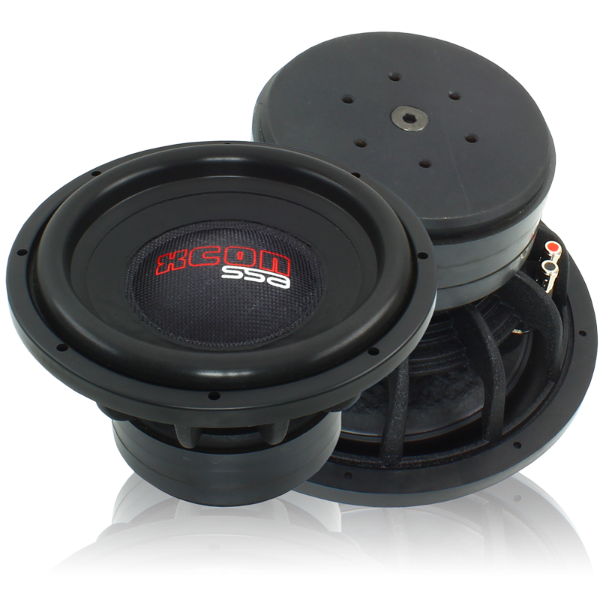

SSA XCON 12 D1
SSA XCON 12 D1
Model

SSA XCON 12 D1

Rating
DIAM
12"
FS(Hz)
38.3
VAS(l)
18
QTS
0.39
PWR(W)
4000
SPL(dB)
85.7
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
38.3
Vas(l)
18
Qts
0.39
Qms
5.87
Qes
0.418
Bl(Tm)
15.7
Mms(gr)
314
Cms(mm/N)
0.055
Rms(kg/s)
12.873
Le(mH)
0
Re(Ohm)
0.7
Sd(sq.mm)
48000
Vd(l)
1.488
X-max(mm)
31
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
96.3

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
317
Cutout Diameter (mm)
283
Mounting Depth (mm)
165
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
