Model

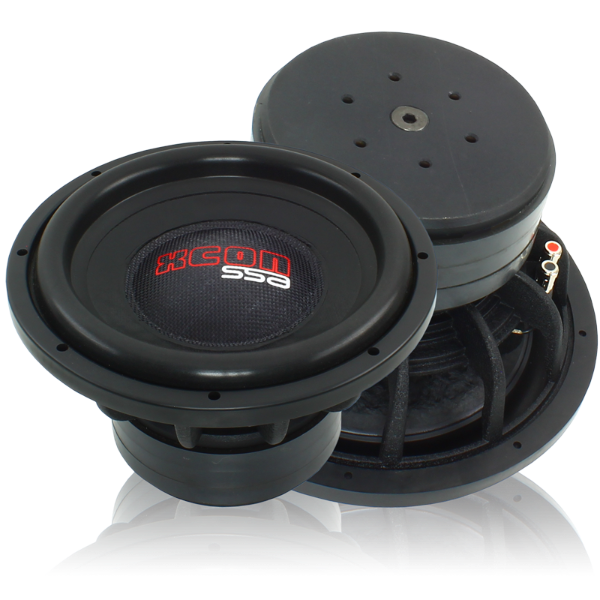

SSA XCON 12 D2
Rating
DIAM
12"
FS(Hz)
38.3
VAS(l)
18
QTS
0.39
PWR(W)
4000
SPL(dB)
85.7
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38.3
Vas(l)
18
Qts
0.39
Qms
5.87
Qes
0.418
Bl(Tm)
15.9
Mms(gr)
314
Cms(mm/N)
0.055
Rms(kg/s)
12.873
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
48000
Vd(l)
1.488
X-max(mm)
31
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
93.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
317
Cutout Diameter (mm)
283
Mounting Depth (mm)
165
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
