Model

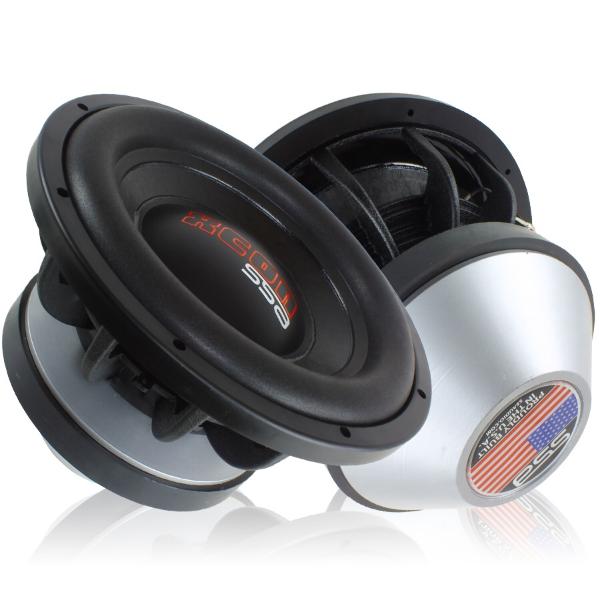

SSA XCON 15 D1
Rating
DIAM
15"
FS(Hz)
31.3
VAS(l)
88.4
QTS
0.42
PWR(W)
3500
SPL(dB)
89.6
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.3
Vas(l)
88.4
Qts
0.42
Qms
6.11
Qes
0.451
Bl(Tm)
20.7
Mms(gr)
268
Cms(mm/N)
0.096
Rms(kg/s)
8.626
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
81000
Vd(l)
2.511
X-max(mm)
31
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3500
RMS Power(W.)
1750
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.58
Sensitivity(dB) 1-W
89.6
Sensitivity(dB) 2.8-V
93
Mounting Information
Speaker Displacement (l)
5.7
Total Diameter (mm)
0
Cutout Diameter (mm)
359
Mounting Depth (mm)
216
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
