Model

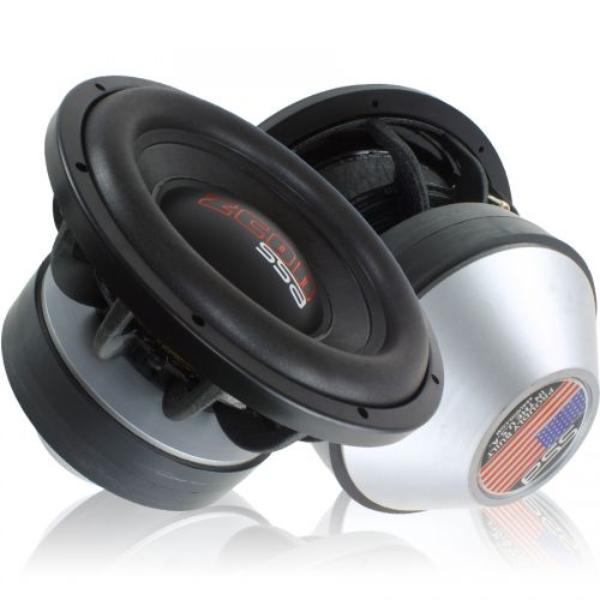

SSA ZCON 15 D2
Rating
DIAM
15"
FS(Hz)
33.1
VAS(l)
67
QTS
0.29
PWR(W)
5500
SPL(dB)
90.9
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.1
Vas(l)
67
Qts
0.29
Qms
6.74
Qes
0.303
Bl(Tm)
25.2
Mms(gr)
274
Cms(mm/N)
0.084
Rms(kg/s)
8.455
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
81000
Vd(l)
2.349
X-max(mm)
29
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
5500
RMS Power(W.)
2250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.77
Sensitivity(dB) 1-W
90.9
Sensitivity(dB) 2.8-V
94.6
Mounting Information
Speaker Displacement (l)
6.23
Total Diameter (mm)
397
Cutout Diameter (mm)
359
Mounting Depth (mm)
248
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
