Model

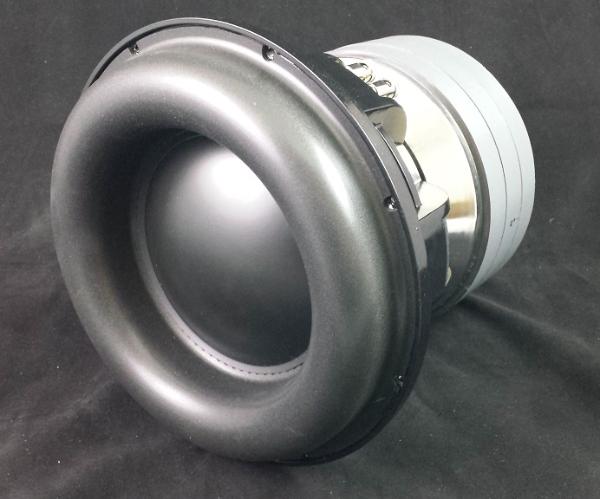

Stereo Integrity HST-11 MKII
Rating
DIAM
11"
FS(Hz)
17
VAS(l)
25.9
QTS
0.37
PWR(W)
4000
SPL(dB)
77
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
17
Vas(l)
25.9
Qts
0.37
Qms
9.2
Qes
0.39
Bl(Tm)
18.2
Mms(gr)
626
Cms(mm/N)
0.14
Rms(kg/s)
7.27
Le(mH)
2.5
Re(Ohm)
1.8
Sd(sq.mm)
36600
Vd(l)
1.391
X-max(mm)
38
X-mech(mm)
50
General Parameters
Diameter (inch)
11
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.03
Sensitivity(dB) 1-W
77
Sensitivity(dB) 2.8-V
83.5
Mounting Information
Speaker Displacement (l)
11.32
Total Diameter (mm)
296
Cutout Diameter (mm)
255
Mounting Depth (mm)
264
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
