Model

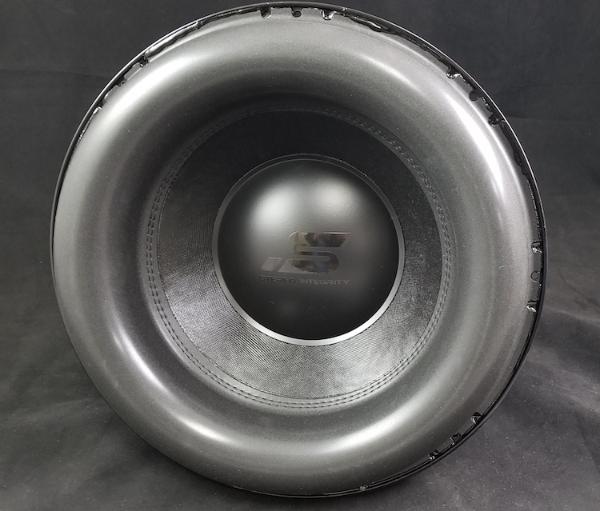

Stereo Integrity HST15 MK III
Rating
DIAM
15"
FS(Hz)
16
VAS(l)
108
QTS
0.3
PWR(W)
0
SPL(dB)
82.9
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
16
Vas(l)
108
Qts
0.3
Qms
4.3
Qes
0.35
Bl(Tm)
17.1
Mms(gr)
718
Cms(mm/N)
0.138
Rms(kg/s)
16.79
Le(mH)
1.2
Re(Ohm)
1.4
Sd(sq.mm)
74284
Vd(l)
2.823
X-max(mm)
38
X-mech(mm)
50
General Parameters
Diameter (inch)
15
Max Power(W.)
0
RMS Power(W.)
0
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.12
Sensitivity(dB) 1-W
82.9
Sensitivity(dB) 2.8-V
90.4
Mounting Information
Speaker Displacement (l)
15.57
Total Diameter (mm)
394
Cutout Diameter (mm)
353
Mounting Depth (mm)
305
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
