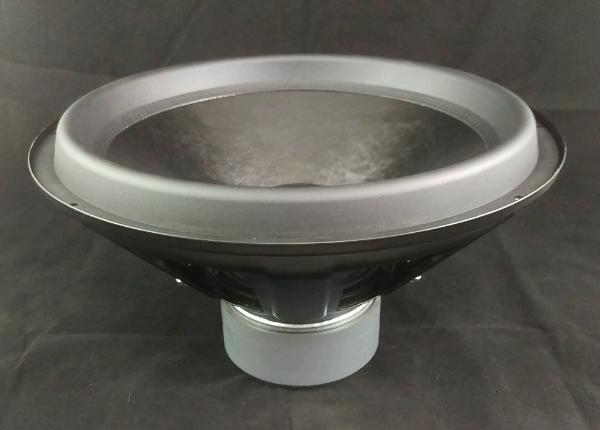

Stereo Integrity HT-18 V2
Stereo Integrity HT-18 V2
Model

Stereo Integrity HT-18 V2

Rating
Star iconStar iconStar iconStar iconStar icon
DIAM
18"
FS(Hz)
21
VAS(l)
299.3
QTS
0.42
PWR(W)
900
SPL(dB)
89.5
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
21
Vas(l)
299.3
Qts
0.42
Qms
3.9
Qes
0.47
Bl(Tm)
19.3
Cms(mm/N)
0.161
Rms(kg/s)
12.078
Le(mH)
5.1
Mms(gr)
357
Vd(l)
2.651
Sd(sq.mm)
117841
X-max(mm)
23
X-mech(mm)
37
Re(Ohm)
3.6

General Parameters

Diameter (inch)
18
Max Power(W.)
900
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.57
Sensitivity(dB) 1-W
89.5
Sensitivity(dB) 2.8-V
93

Mounting Information

Speaker Displacement (l)
7
Total Diameter (mm)
470
Cutout Diameter (mm)
424
Mounting Depth (mm)
241
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4
