Model

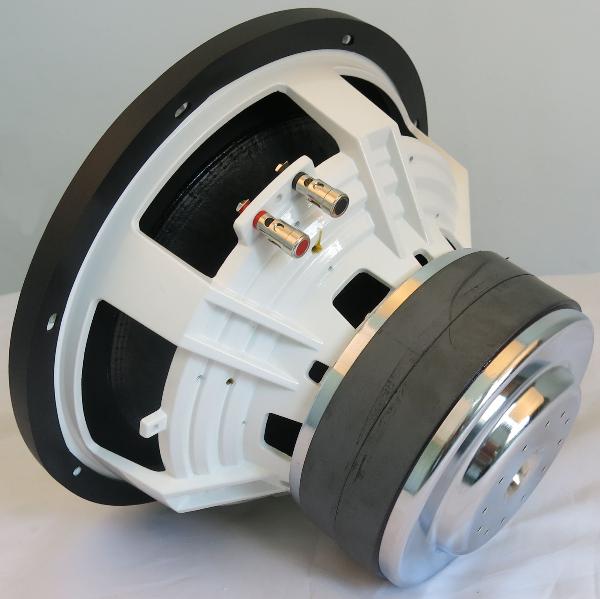

Stereo Integrity SQL-15 D2
Rating
DIAM
15"
FS(Hz)
23.8
VAS(l)
115
QTS
0.42
PWR(W)
2000
SPL(dB)
87.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
23.8
Vas(l)
115
Qts
0.42
Qms
5.8
Qes
0.45
Bl(Tm)
20.4
Mms(gr)
388
Cms(mm/N)
0.115
Rms(kg/s)
10
Le(mH)
2.7
Re(Ohm)
3.5
Sd(sq.mm)
83980
Vd(l)
2.385
X-max(mm)
28
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.33
Sensitivity(dB) 1-W
87.2
Sensitivity(dB) 2.8-V
90.8
Mounting Information
Speaker Displacement (l)
4.53
Total Diameter (mm)
391
Cutout Diameter (mm)
351
Mounting Depth (mm)
203
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
