Model

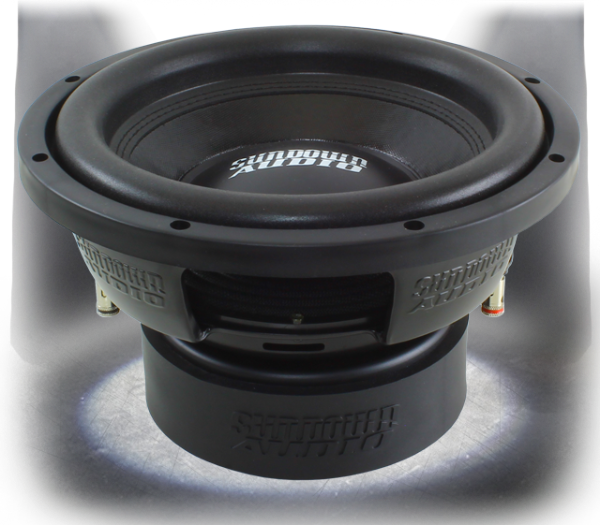

Sundown Audio E 10 V3 D4
Rating
DIAM
10"
FS(Hz)
33.5
VAS(l)
18.8
QTS
0.39
PWR(W)
1000
SPL(dB)
84
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.5
Vas(l)
18.8
Qts
0.39
Qms
4.39
Qes
0.43
Bl(Tm)
23.5
Mms(gr)
184
Cms(mm/N)
0.123
Rms(kg/s)
8.808
Le(mH)
0
Re(Ohm)
6.1
Sd(sq.mm)
32828
Vd(l)
0.46
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.115
Total Diameter (mm)
0
Cutout Diameter (mm)
225
Mounting Depth (mm)
143
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
