Model

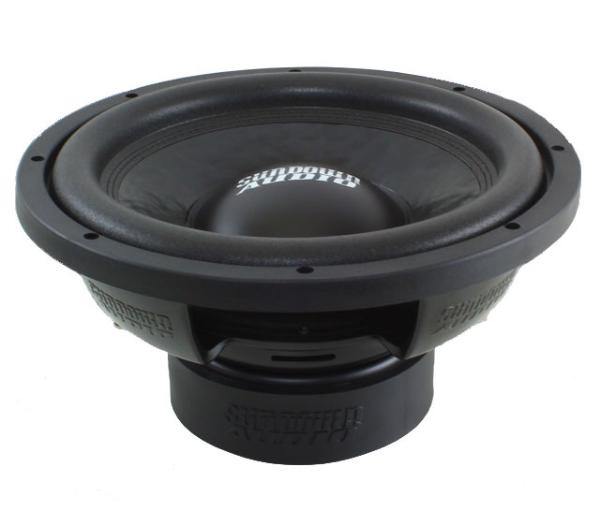

Sundown Audio E 12 V3 D2
Rating
DIAM
12"
FS(Hz)
32.4
VAS(l)
73.3
QTS
0.37
PWR(W)
1000
SPL(dB)
86.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.4
Vas(l)
73.3
Qts
0.37
Qms
3.9
Qes
0.41
Bl(Tm)
21.4
Mms(gr)
228
Cms(mm/N)
0.106
Rms(kg/s)
11.886
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
69819
Vd(l)
0.977
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.398
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
165
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
