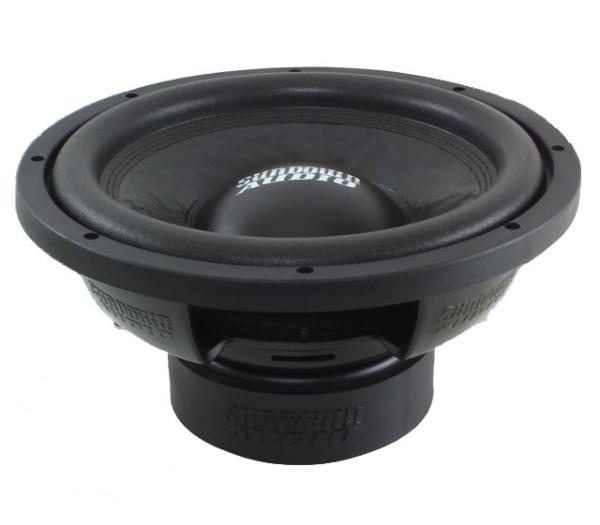

Sundown Audio E 12 V3 D4
Sundown Audio E 12 V3 D4
Model

Sundown Audio E 12 V3 D4

Rating
DIAM
12"
FS(Hz)
36.6
VAS(l)
30.8
QTS
0.47
PWR(W)
1000
SPL(dB)
86.4
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
36.6
Vas(l)
30.8
Qts
0.47
Qms
4.58
Qes
0.52
Bl(Tm)
24.4
Mms(gr)
224
Cms(mm/N)
0.084
Rms(kg/s)
11.247
Le(mH)
0
Re(Ohm)
6.1
Sd(sq.mm)
50846
Vd(l)
0.712
X-max(mm)
14
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.4
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
3.398
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
165
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
