Model

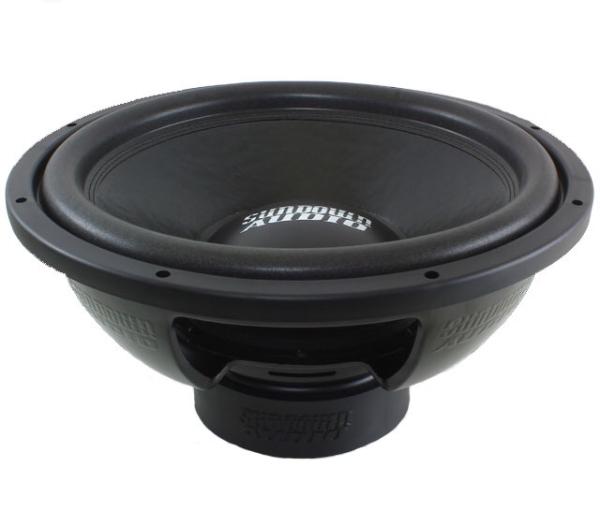

Sundown Audio E 15 V3 D2
Rating
DIAM
15"
FS(Hz)
32.2
VAS(l)
75.1
QTS
0.48
PWR(W)
1000
SPL(dB)
88.6
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.2
Vas(l)
75.1
Qts
0.48
Qms
4.79
Qes
0.53
Bl(Tm)
21.8
Mms(gr)
313
Cms(mm/N)
0.078
Rms(kg/s)
13.181
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
82392
Vd(l)
1.153
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.964
Total Diameter (mm)
0
Cutout Diameter (mm)
352
Mounting Depth (mm)
184
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
