Model

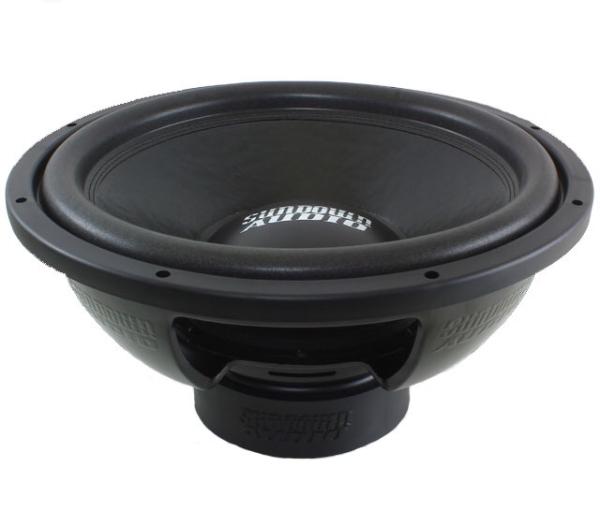

Sundown Audio E 15 V3 D4
Rating
DIAM
15"
FS(Hz)
31.3
VAS(l)
85.5
QTS
0.54
PWR(W)
1000
SPL(dB)
88.1
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.3
Vas(l)
85.5
Qts
0.54
Qms
4.32
Qes
0.62
Bl(Tm)
23.8
Mms(gr)
292
Cms(mm/N)
0.09
Rms(kg/s)
13.27
Le(mH)
0
Re(Ohm)
6.1
Sd(sq.mm)
81844
Vd(l)
1.146
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.964
Total Diameter (mm)
0
Cutout Diameter (mm)
352
Mounting Depth (mm)
184
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
