Model

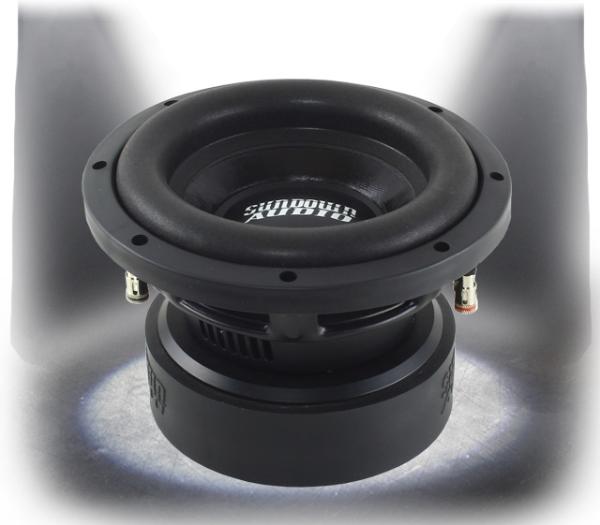

Sundown Audio E8 V5 D2
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
8"
FS(Hz)
39.7
VAS(l)
7.1
QTS
0.44
PWR(W)
500
SPL(dB)
81.4
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39.7
Vas(l)
7.1
Qts
0.44
Qms
4.56
Qes
0.49
Bl(Tm)
15.7
Mms(gr)
127
Cms(mm/N)
0.126
Rms(kg/s)
6.972
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
19943
Vd(l)
0.279
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
500
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.803
Total Diameter (mm)
0
Cutout Diameter (mm)
184
Mounting Depth (mm)
130
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
