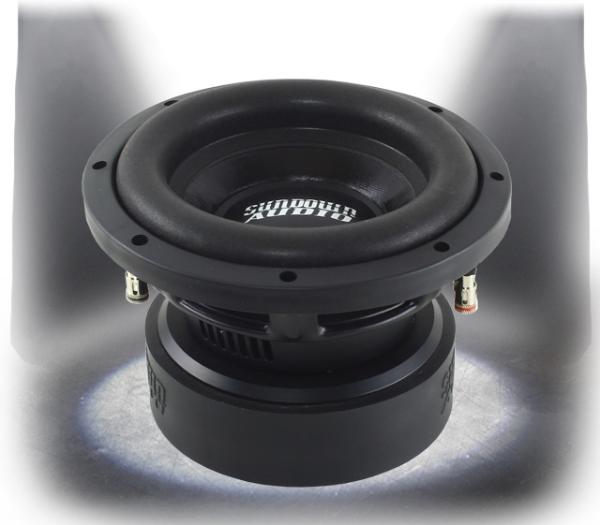

Sundown Audio E8 V5 D4
Sundown Audio E8 V5 D4
Model

Sundown Audio E8 V5 D4

Rating
DIAM
8"
FS(Hz)
40.9
VAS(l)
7.1
QTS
0.53
PWR(W)
500
SPL(dB)
0
IMP(Ohm)
4x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
40.9
Vas(l)
7.1
Qts
0.53
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
14
X-mech(mm)
0

General Parameters

Diameter (inch)
8
Max Power(W.)
500
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
2.8
Total Diameter (mm)
0
Cutout Diameter (mm)
184
Mounting Depth (mm)
130
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
