Model

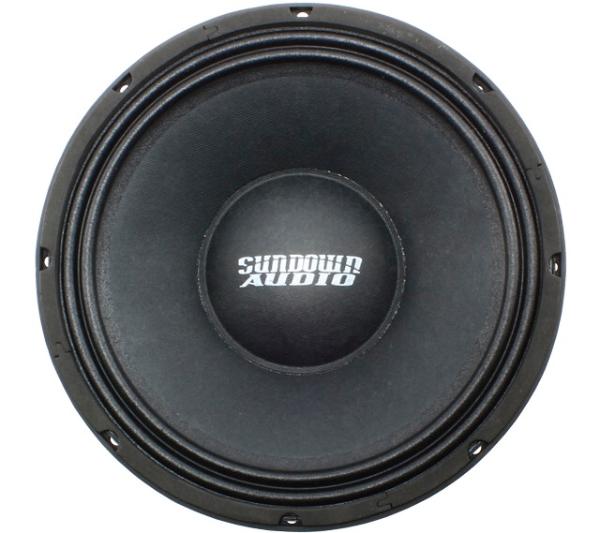

Sundown Audio NEOPRO V2 10
Rating
DIAM
10"
FS(Hz)
65.1
VAS(l)
44.3
QTS
0.51
PWR(W)
600
SPL(dB)
94.9
IMP(Ohm)
8x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
65.1
Vas(l)
44.3
Qts
0.505
Qms
3.2
Qes
0.598
Bl(Tm)
10.3
Mms(gr)
28
Cms(mm/N)
0.216
Rms(kg/s)
3.54
Le(mH)
0
Re(Ohm)
5.6
Sd(sq.mm)
38027
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.97
Sensitivity(dB) 1-W
94.9
Sensitivity(dB) 2.8-V
96.5
Mounting Information
Speaker Displacement (l)
1.2
Total Diameter (mm)
260
Cutout Diameter (mm)
232
Mounting Depth (mm)
102
Magnet Diameter (mm)
85
Optimum Enclosures
Enclosures
Vented, BP6
