Model

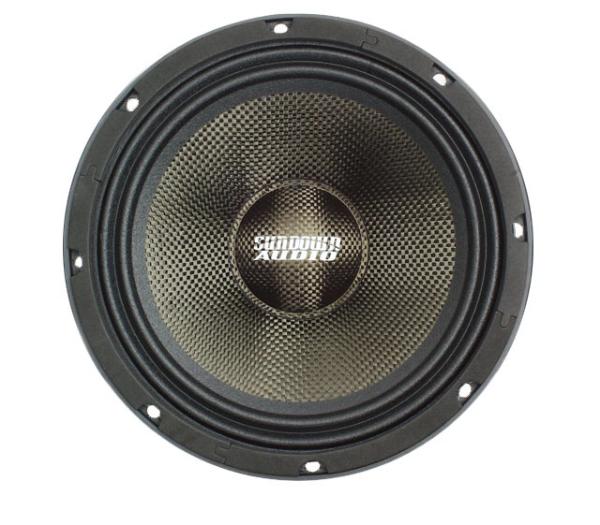

Sundown Audio NEOPRO V3 8 S8
Rating
DIAM
8"
FS(Hz)
85.9
VAS(l)
17.3
QTS
0.72
PWR(W)
400
SPL(dB)
92.9
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
85.9
Vas(l)
17.3
Qts
0.723
Qms
4.4
Qes
0.866
Bl(Tm)
8.2
Mms(gr)
16
Cms(mm/N)
215.845
Rms(kg/s)
1.95
Le(mH)
0
Re(Ohm)
6.8
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.22
Sensitivity(dB) 1-W
92.9
Sensitivity(dB) 2.8-V
93.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
