Model

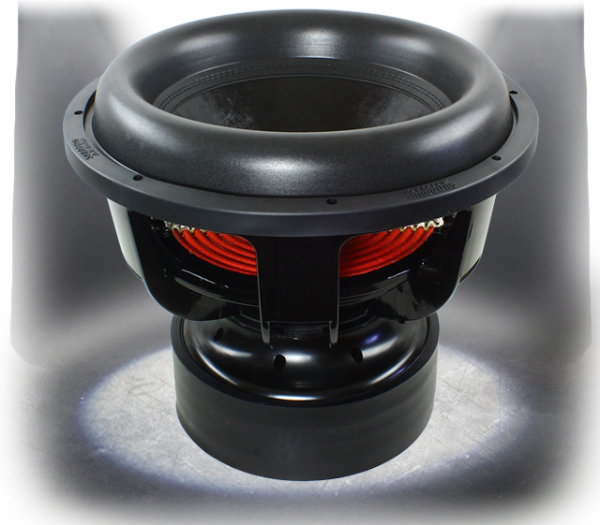

Sundown Audio NSV3 15 D1
Rating
DIAM
15"
FS(Hz)
29.7
VAS(l)
52.1
QTS
0.36
PWR(W)
5000
SPL(dB)
87.4
IMP(Ohm)
1x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.7
Vas(l)
52.1
Qts
0.364
Qms
7.5
Qes
0.383
Bl(Tm)
20.6
Mms(gr)
493
Cms(mm/N)
58.46
Rms(kg/s)
12.18
Le(mH)
0.97
Re(Ohm)
1.8
Sd(sq.mm)
79173
Vd(l)
3.167
X-max(mm)
40
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
5000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.34
Sensitivity(dB) 1-W
87.4
Sensitivity(dB) 2.8-V
93.8
Mounting Information
Speaker Displacement (l)
7.36
Total Diameter (mm)
394
Cutout Diameter (mm)
351
Mounting Depth (mm)
330
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
