Model

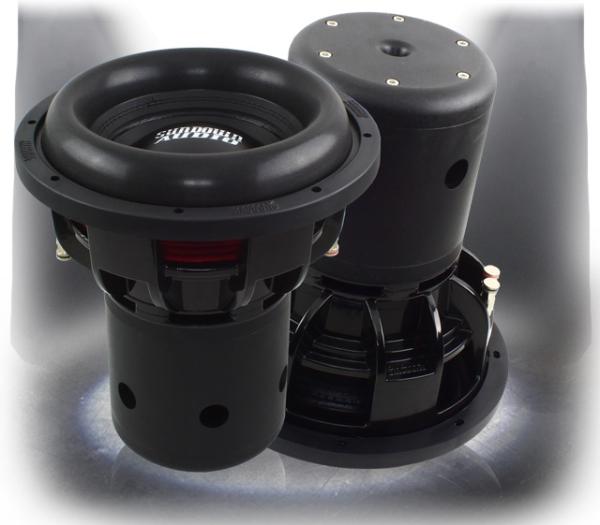

Sundown Audio NSV4 10 D1
Rating
DIAM
10"
FS(Hz)
43.9
VAS(l)
5.8
QTS
0.43
PWR(W)
9000
SPL(dB)
82
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
43.9
Vas(l)
5.8
Qts
0.426
Qms
4.6
Qes
0.469
Bl(Tm)
18.2
Mms(gr)
396
Cms(mm/N)
0.033
Rms(kg/s)
23.51
Le(mH)
0.96
Re(Ohm)
1.4
Sd(sq.mm)
34907
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
9000
RMS Power(W.)
3000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
82
Sensitivity(dB) 2.8-V
89.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
296
Cutout Diameter (mm)
254
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
