Model

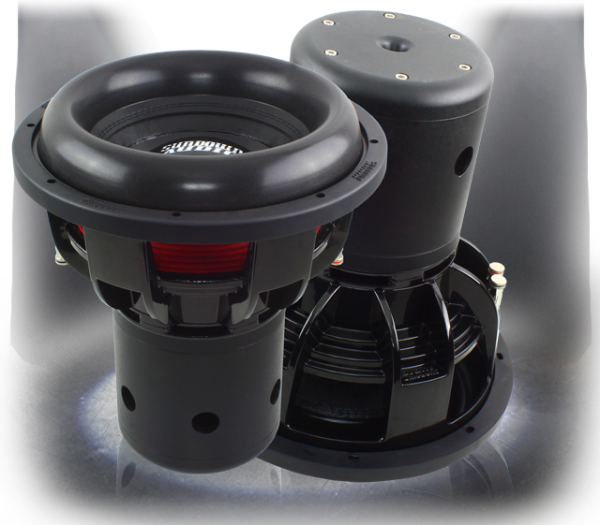

Sundown Audio NSV4 12 D2
Rating
DIAM
12"
FS(Hz)
39.1
VAS(l)
10.88
QTS
0.34
PWR(W)
6000
SPL(dB)
84.3
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39.1
Vas(l)
10.9
Qts
0.345
Qms
4.6
Qes
0.373
Bl(Tm)
27.9
Mms(gr)
415
Cms(mm/N)
0.04
Rms(kg/s)
22.14
Le(mH)
1.98
Re(Ohm)
2.9
Sd(sq.mm)
43793
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
6000
RMS Power(W.)
3000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.3
Sensitivity(dB) 2.8-V
88.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
296
Cutout Diameter (mm)
254
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
