Model

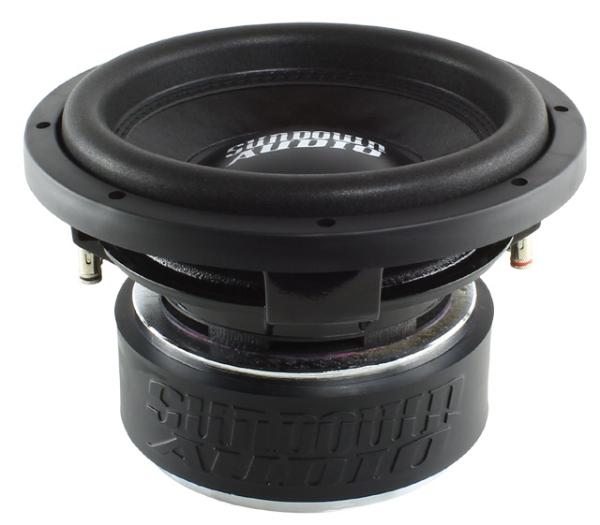

Sundown Audio SA 10 D4(REV3)
Rating
DIAM
10"
FS(Hz)
36.6
VAS(l)
10.7
QTS
0.49
PWR(W)
1500
SPL(dB)
81.6
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36.6
Vas(l)
10.7
Qts
0.49
Qms
5.3
Qes
0.54
Bl(Tm)
24.8
Mms(gr)
205
Cms(mm/N)
0.092
Rms(kg/s)
8.895
Le(mH)
0
Re(Ohm)
7.1
Sd(sq.mm)
28637
Vd(l)
0.544
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.83
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
152
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
