Model

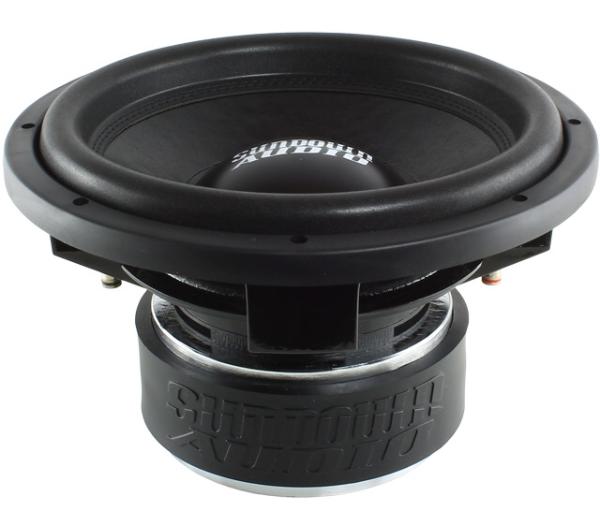

Sundown Audio SA 12 D2(REV3)
Rating
DIAM
12"
FS(Hz)
33.7
VAS(l)
21.2
QTS
0.52
PWR(W)
1200
SPL(dB)
83.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.7
Vas(l)
21.2
Qts
0.52
Qms
5.34
Qes
0.58
Bl(Tm)
21.6
Mms(gr)
280
Cms(mm/N)
0.08
Rms(kg/s)
11.103
Le(mH)
0
Re(Ohm)
4.6
Sd(sq.mm)
43226
Vd(l)
0.821
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
165
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
