Model

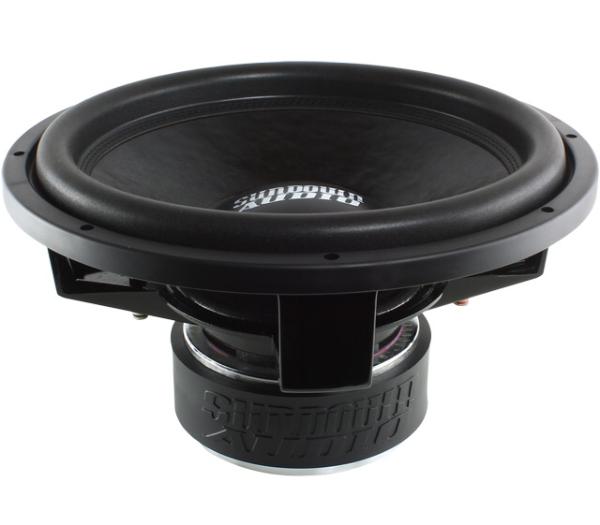

Sundown Audio SA 15 D2(REV3)
Rating
DIAM
15"
FS(Hz)
34.9
VAS(l)
54.7
QTS
0.65
PWR(W)
1200
SPL(dB)
86.8
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34.9
Vas(l)
54.7
Qts
0.65
Qms
6.52
Qes
0.72
Bl(Tm)
21.8
Mms(gr)
338
Cms(mm/N)
0.066
Rms(kg/s)
11.361
Le(mH)
0
Re(Ohm)
4.6
Sd(sq.mm)
76444
Vd(l)
1.452
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.8
Total Diameter (mm)
0
Cutout Diameter (mm)
359
Mounting Depth (mm)
191
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
