Model

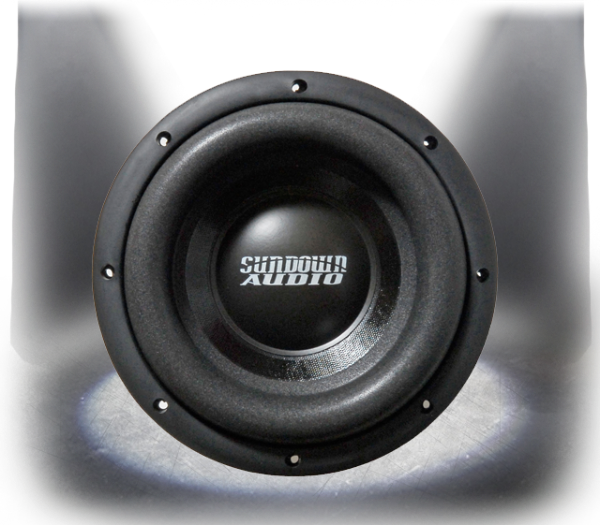

Sundown Audio SA 8 V1 D2
Rating
DIAM
8"
FS(Hz)
41.6
VAS(l)
3.3
QTS
0.48
PWR(W)
1000
SPL(dB)
78.5
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
41.6
Vas(l)
3.3
Qts
0.48
Qms
6.61
Qes
0.51
Bl(Tm)
17.1
Mms(gr)
176
Cms(mm/N)
0.083
Rms(kg/s)
6.946
Le(mH)
2.78
Re(Ohm)
3.3
Sd(sq.mm)
16705
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.04
Sensitivity(dB) 1-W
78.5
Sensitivity(dB) 2.8-V
82.4
Mounting Information
Speaker Displacement (l)
2.4
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
