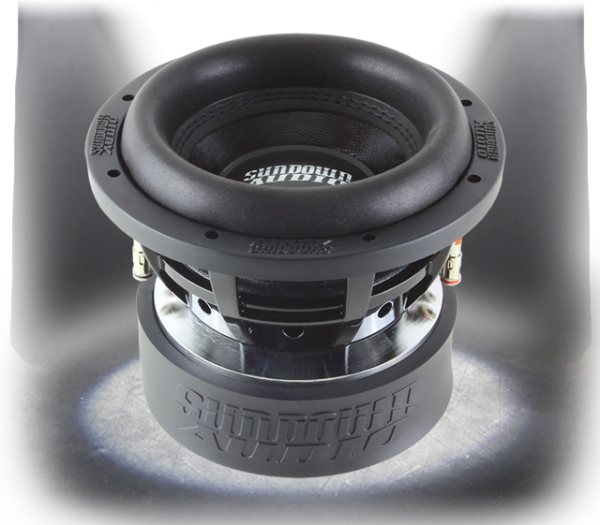

Sundown Audio SA 8 V3 D2
Sundown Audio SA 8 V3 D2
Model

Sundown Audio SA 8 V3 D2

Rating
DIAM
8"
FS(Hz)
38.3
VAS(l)
6.9
QTS
0.31
PWR(W)
1000
SPL(dB)
82.8
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
38.3
Vas(l)
6.9
Qts
0.309
Qms
6.31
Qes
0.33
Bl(Tm)
18.9
Cms(mm/N)
0.12
Rms(kg/s)
5.482
Le(mH)
0
Mms(gr)
144
Vd(l)
0.322
Sd(sq.mm)
20107
X-max(mm)
16
X-mech(mm)
0
Re(Ohm)
3.4

General Parameters

Diameter (inch)
8
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.8
Sensitivity(dB) 2.8-V
86.3

Mounting Information

Speaker Displacement (l)
2.265
Total Diameter (mm)
0
Cutout Diameter (mm)
187
Mounting Depth (mm)
168
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
