Model

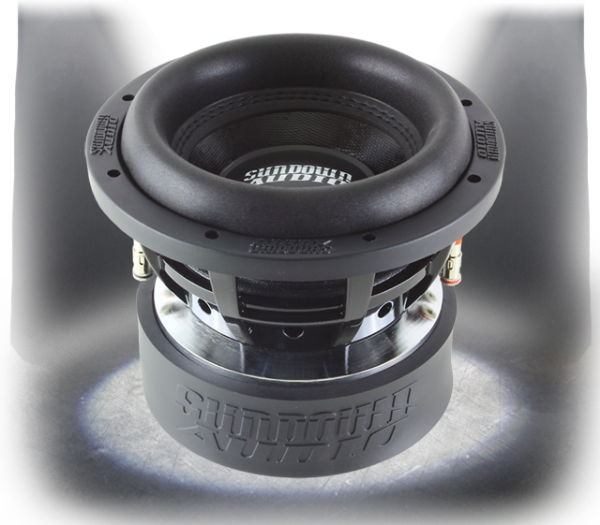

Sundown Audio SA 8 V3 D4
Rating
DIAM
8"
FS(Hz)
40
VAS(l)
7.2
QTS
0.36
PWR(W)
1000
SPL(dB)
82.7
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
7.2
Qts
0.36
Qms
4.31
Qes
0.39
Bl(Tm)
22.1
Mms(gr)
127
Cms(mm/N)
0.125
Rms(kg/s)
7.382
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
20111
Vd(l)
0.322
X-max(mm)
16
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.265
Total Diameter (mm)
0
Cutout Diameter (mm)
187
Mounting Depth (mm)
168
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
