Model

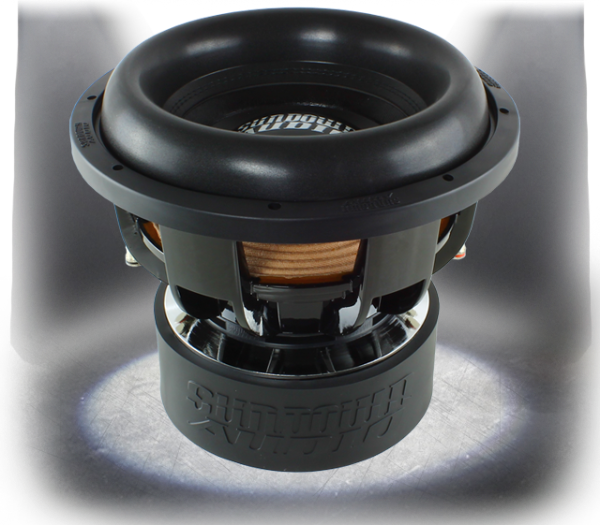

Sundown Audio X 12 V2 D2
Rating
DIAM
12"
FS(Hz)
36.1
VAS(l)
17.1
QTS
0.41
PWR(W)
3000
SPL(dB)
84.4
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36.1
Vas(l)
17.1
Qts
0.41
Qms
4.89
Qes
0.45
Bl(Tm)
25.2
Mms(gr)
326
Cms(mm/N)
0.06
Rms(kg/s)
15.131
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
44828
Vd(l)
1.345
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
5.6
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
245
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
