Model

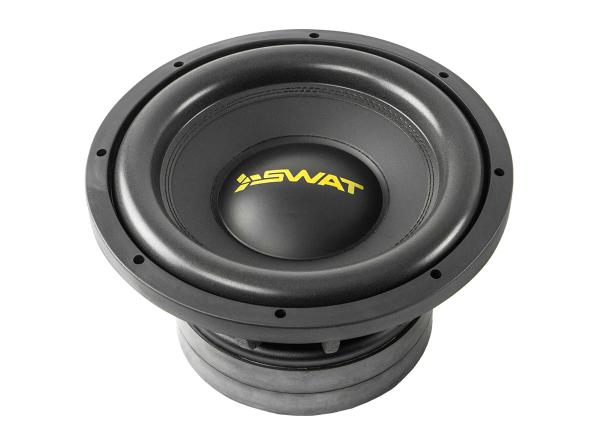

SWAT EXE-12D1
Rating
DIAM
12"
FS(Hz)
48.8
VAS(l)
14.5
QTS
0.5
PWR(W)
0
SPL(dB)
86.6
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
48.8
Vas(l)
14.5
Qts
0.5
Qms
5
Qes
0.555
Bl(Tm)
13.7
Mms(gr)
231
Cms(mm/N)
0.046
Rms(kg/s)
14.18
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
47100
Vd(l)
1.13
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
0
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
89.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
280
Mounting Depth (mm)
162
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
