Model

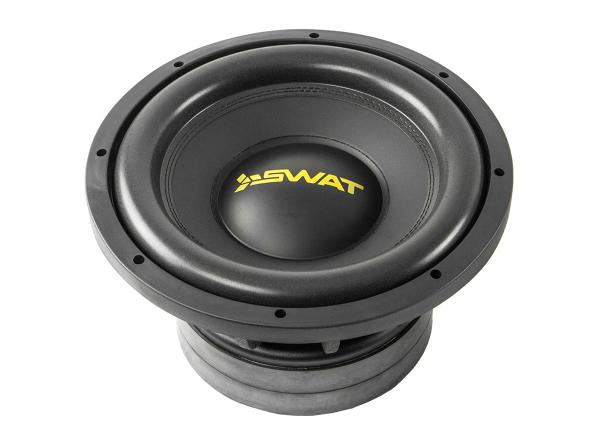

SWAT EXE-12D2
Rating
DIAM
12"
FS(Hz)
37.2
VAS(l)
16.8
QTS
0.43
PWR(W)
4000
SPL(dB)
85.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37.2
Vas(l)
16.8
Qts
0.43
Qms
0
Qes
0
Bl(Tm)
25.7
Mms(gr)
339
Cms(mm/N)
0.054
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.9
Sd(sq.mm)
47100
Vd(l)
1.13
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
89.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
280
Mounting Depth (mm)
162
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
