Model

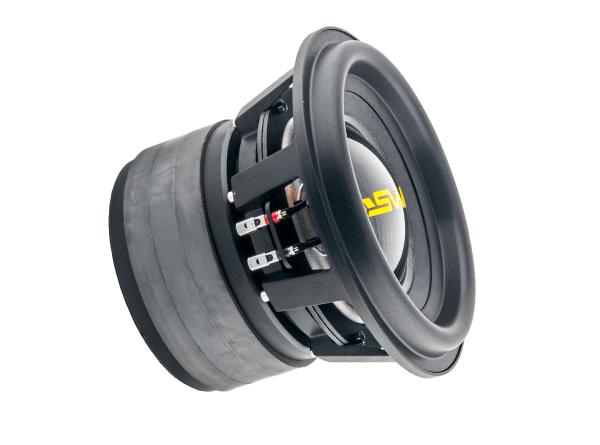

SWAT HLG 12 D2 (HOOLIGAN)
Rating
DIAM
12"
FS(Hz)
30
VAS(l)
28
QTS
0.26
PWR(W)
5000
SPL(dB)
87
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
28
Qts
0.26
Qms
0
Qes
0
Bl(Tm)
29.1
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
33
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
5000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.45
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
90.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
320
Cutout Diameter (mm)
285
Mounting Depth (mm)
225
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
