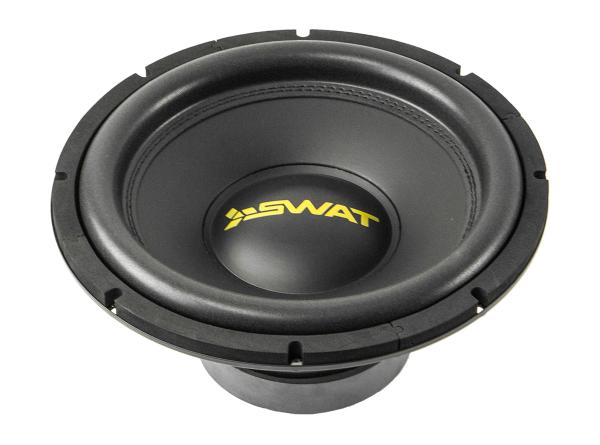

SWAT MAS-10
SWAT MAS-10
Model

SWAT MAS-10

Rating
DIAM
10"
FS(Hz)
36.4
VAS(l)
24.5
QTS
0.6
PWR(W)
600
SPL(dB)
84.3
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
36.4
Vas(l)
24.5
Qts
0.6
Qms
5.7
Qes
0.671
Bl(Tm)
11.6
Mms(gr)
126
Cms(mm/N)
0.152
Rms(kg/s)
5.05
Le(mH)
0
Re(Ohm)
3.1
Sd(sq.mm)
33700
Vd(l)
0.472
X-max(mm)
14
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.3
Sensitivity(dB) 2.8-V
88.4

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
236
Mounting Depth (mm)
125
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
